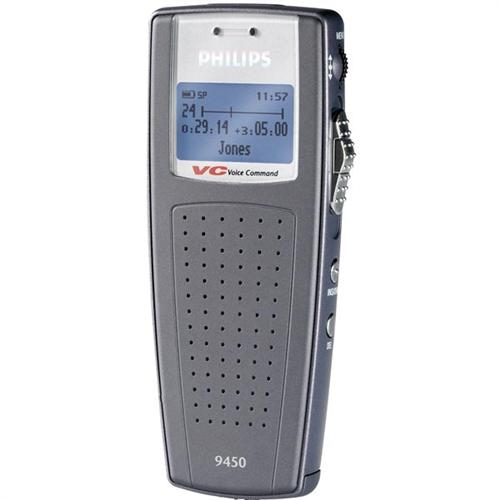

Philips LFH-9450 VC Digital Voice Recorder

Dictation benefits are now enhanced by the ability to assign patient/client IDs or work types to a dictation by simply speaking them. This unique feature allows fast and convenient marking of dictation files for better identification, transcription and archiving.

The Digital Pocket Memo® 9450 VC is ideal for use in dedicated application and workflow environments. It offers full system integration and many advanced, user-oriented features for faster and more efficient workflow.

Based on feedback from professional users, several new features have been incorporated such as centralized firmware upgrades, record-mode notification beep and an exchangeable Multimedia/SD Card.

Product benefits of the Digital Pocket Memo® 9450

• The 9450 VC recognizes work type codes or patient/client ID numbers spoken by the author and transforms these into file headers. The author gets immediate visual feedback via the display. Up to five ID numbers or two different work types can be assigned
• 4-position-switch enables single-handed use, allowing you to continue working in the most familiar way
• Record notification beep: can be activated, for ‘recording in progress’ notification for intuitive operation.
• Exchangeable Multimedia/SD Card provides simple, efficient data transfer and flexibility when on the move. MMC or SD cards up to 2 GB can be used. A Philips Multimedia Card is included.
• Option to change storage mode allowing continuous recording similar to analogue tape-based recording.
• DSS file format, the industry-standard file format for recording devices, offers minimum file sizes while maintaining crystal clear sound quality.
• End-of-letter index marks a dictation file as complete and automatically generates a new file (button can also be disabled).
• Voice-activated recording gives users hands-free dictation.
• Insert, overwrite and delete functions allow full editing and continuity of dictation (buttons can also be disabled).

Workflow benefits of Digital Pocket Memo® 9450

• Workflow management capability enables definition of 5 x 20 keywords.
• The Barcode Scanner Module 9284 (optional) can be used to link demographic information to dictation files.
• Centrally triggered remote firmware upgrade allows simultaneous upgrading to future product enhancements, greatly facilitating enterprise wide maintenance.
• Priority index marks a dictation file as urgent.
• LC display shows creation time/date, size of the dictation file, operating mode and battery status.

  Direct download to PC

• Fully automatic or with user-defined settings
• Automatic e-mail creation
• Compatible with most speech recognition systems

  Package contents

• Digital Pocket Memo® 9450 VC
• Travel pouch
• SpeechExec Pro Dictate Software
• USB Download Cable
• 2x AAA Alkaline Batteries
• Philips Multimedia Card

  Technical data

• Weight: 87 grams
• Dimensions: 127 x 51,5 x 16,2 mm
• Acoustic frequency response: 300 – 6,000 Hz
• Output power: 140 mW
• Earphones socket: 2.5 mm
• Microphone socket: 2.5 mm
• Data input / output socket: Mini USB 2.0 full speed
• Power Supply socket: 6.3 V DC
• File name: Automatic or user defined filename creation
• Record time (e.g. for 64 MB): LP > 15 hours / SP > 10 hours
• Battery life:  approx. 12 hours
• Download time: 10 min. dictation in 3.2 sec
