Totally reliable performance in an easy to use desktop design.

Re-engineered to deliver increased paper capacity and expanded functionality in a compact desktop design, the new UF-8200 / 7200 leads the industry with 0.7 seconds (UF-8200) / 1.4 seconds (UF-7200) Quick Scan speeds. Feeding from a single sheet up to 100 sheets, the high-performance ADF mechanism smoothly and reliably transports each document. With versatile scanning and document management functions plus a user-friendly interface and ergonomic design, the UF-8200 / 7200 is much more than a high-performance fax. It is a powerful office solution that enhances productivity.

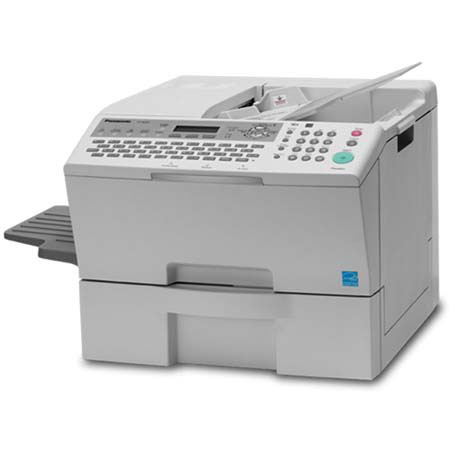

The Panafax UF-8200 Fax Machine is a high-volume workstation designed to handle the needs of any busy office or midsize workgroups. With it's standard 550 sheet paper capacity, 100-page Auto Document Feeder and 19ppm printer engine the UF-8200 is built for productivity

The Next Generation Panafax UF-8200 multifunction fax station comes equipped with all the features that every office needs. With built-in Network scanning and Internet Fax capabilities users can easily convert paper documents into electronic files, as well as send them to any Internet Fax capable device or Email address anywhere in the world.

With user friendly features like the QWERTY keyboard for easy station programming, Backlit LCD display, 10,000 page all-in-one toner cartridge, large easy to pull out paper draw and advanced network device management software you can rest assured the Panafax UF-8200 will not be the bottleneck in your office.

Features

• Auto Dialer: 580 stations Standard
(up to 1000 stations with optional SD memory card)
• One-touch Auto Dial : up to 80 stations
• Abbreviated Dial: up to 500 stations
• Maximum Digits for Telephone number: 36 digits
• Program Keys (up to 80 programs)
• Multi-Tasking Operation
• Directory Search Dialling
• Directory Sheet Print
• Intelligent Redial
• Chain Dialling
• Quick Memory Transmission
• Multi-Station Transmission (up to 630 stations)
• Deferred Transmission
• Deferred Multi-Station Transmission
• Duplex Transmission
• Misdial Prevention
• Junk Fax Filter
• Receive To Memory
• Substitute Reception
• Number of memory job files (Max. 50 files)
• Fax Forward (G3/Email)
• Polling/Multi-Station Polling
• Deferred Polling/Deferred Multi-Station Polling
• Memory Polling Transmission (1 file)
• ITU-T Sub-address Transmission
• 256-level Halftone
• Automatic/Fixed Reduction
• Collation Stack
• Email Report (UF-8200)
• Verification Stamp
• Confirmation Journal with image data
• Header/Total Page Print
• Transmission Journal with view mode
• Fax Access Code (Fax Lock)
• Department Code (up to 50)
• Multiple Copy with Sorting (up to 99)
• Zoom/Reduction Copy
• Sort Copy
----------------------------------------------
• Energy Saver
• Check and Call Function (G3/Email)
• Remote Diagnostic System (G3/Email)*2
----------------------------------------------
• User Authentication*3
• Job Tracking*3
• Fax Transmission via Right Fax Server*3
• LDAP 2 compatible
• SMTP Authentication
----------------------------------------------
Standard Software
• PC Fax software (Fax Driver/Panafax Desktop)
• Quick Image Navigator
• Network Address Book Editor
• Network Configuration Editor
• Network Status Monitor

Intuitive design and functions for ease of use

From the easy-grip large tray handle to quick directory search using the bright back-lit LCD*3 display, every detail of the UF-8200 / 7200 is designed for ease of use. Users will enjoy the convenience of the One-touch Auto Dialer with 80 one-touch stations and 500 abbreviated dialing numbers. The QWERTY keyboard simplifies both programming and searching for numbers, while built-in LDAP (Lightweight Directory Access Protocol) server capability provides access to your existing global address book. The UF-8200 / 7200*4 also comes standard with scanning and network connectivity, letting users take advantage of powerful document management and distribution functions as well as Internet Faxing. Users can easily and economically send documents to other Internet Fax-capable stations or as Email attachments to PCs over the Internet or corporate Intranet from the console or their desktop PC. *3 Back lit LCD on UF-8200 only *4 I-Fax/Email/Scanning function optional on UF-7200

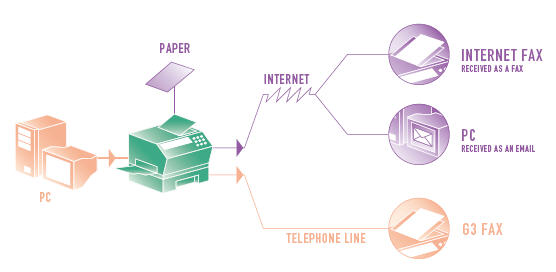

PC Fax & Internet Fax (outgoing faxes):

For inbound faxes, the UF-8200 / 7200 can convert them into Email attachments and send them to the appropriate Email address. This capability significantly reduces wasted paper, toner and power, while increasing the confidentiality and integrity of incoming documents in your office. With the optional Document Distribution System, the UF-8200 / 7200 can also read TSI or sub-addresses and automatically route inbound faxes to a designated user folder.

Routing of inbound faxes:

Specifications

General Functions:		title line
	ADF Capacity		100 Sheets
	Recording Paper Capacity		550 Sheet
	Maximum Paper Capacity		1,100 Sheets
	Power Requirements		AC 120V, 50/60 Hz
	Power Consumption		Max: Approximately 1000 W Power Save Mode: 9.5 Wh Sleep Mode: 4.5 Wh
	Document Size		Max: 8.5" x 78.7" with operators assistance 1(see footnotes) Min: 5.5" x 5.5"
	Digital Copier Functions:		title line
	Image Memory Capacity		Standard: 3 MB (180 pages) Max: 2GB (12,750 pages) with optional SD Memory card
	Network Scanner Functions:		title line
	Network Scanner Interface		10/100 Ethernet
	Scanning Resolution		Standard: 150 dpi x 150 dpi Fine: 300 dpi x 300 dpi Super Fine: 600 dpi x 600 dpi
	Scanning Speed		Approximately 1.1 seconds (150 x 150 dpi)
	Network Printer Functions:		title line
	Printer Interface		USB 1.1 / 10/100 Ethernet
	Printer Language		Standard: Panasonic Printing System for Windows®
	Paper Size		Letter/ Legal/ A4
	Printer Memory		32MB
	Compatible Operating System		Windows XP/2000/Server 2003/Vista
	G3 Fax Functions:		title line
	G3 Fax Compatibility		ITU-T Group 3, ECM
	G3 Fax Transmission Speed 2		Approximately 2.7 seconds per page (letter size)
	G3 Fax Scanning Resolution		Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm) Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm) Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
	No. of Auto Dialers		Standard: 580 Max: 1,000 with optional SD memory card (32MB to 2GB)
	Coding Scheme		MH/MR/MMR/JBIG
	Number of Memory Job Files		50
	Effective Scanning Width		8.34"
	Scanning Speed 3		Approximately 0.7 seconds per page (letter)
	Scan-to-Email / Internet Fax Functions:		title line
	Scan-to-Email Compatibility		IETF RFC 2305, ITU-T T.37
	Communication Protocol		TCP/IP, SMTP, POP3, MIME, DHCP, LDAP, SNMP/MIB
	Data Format		TIFF-FX (Profile S/FJ), PDF 4

1 Standard/Fine mode 2 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the same models at maximum modem speed. Transmission time may vary in actual usage. Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower. Via PBX, transmission speed may fall back to a lower speed. 3 Scanning speed applies to the feeding process from the top to the end of a single page test chart. The time for the feeding process does not include the time that it takes for the top edge of the page to reach the scanning point and page ejection. Time for entire storing process is not applied. 4 Internet Fax only supports TIFF-FX format.
